Background information on OS MasterMap® Topography Layer Building Height Attribute and details of the attributes supplied by Ordnance Survey can be found on the Building Height Attribute Overview page.
BHA data is available from Digimap in File Geodatabase format, which can be read by QGIS without requiring any processing. It is easy to visualise BHA in File Geodatabase format using a freely available QGIS plugin. The following steps describe the process in detail.

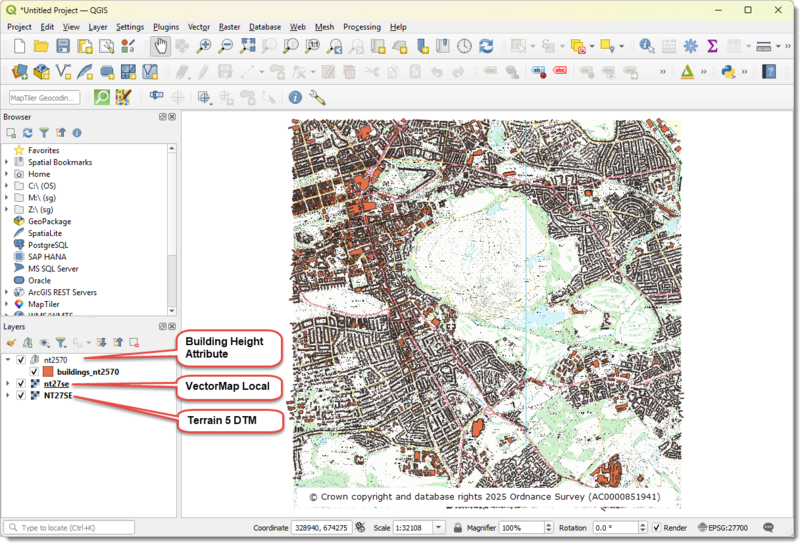

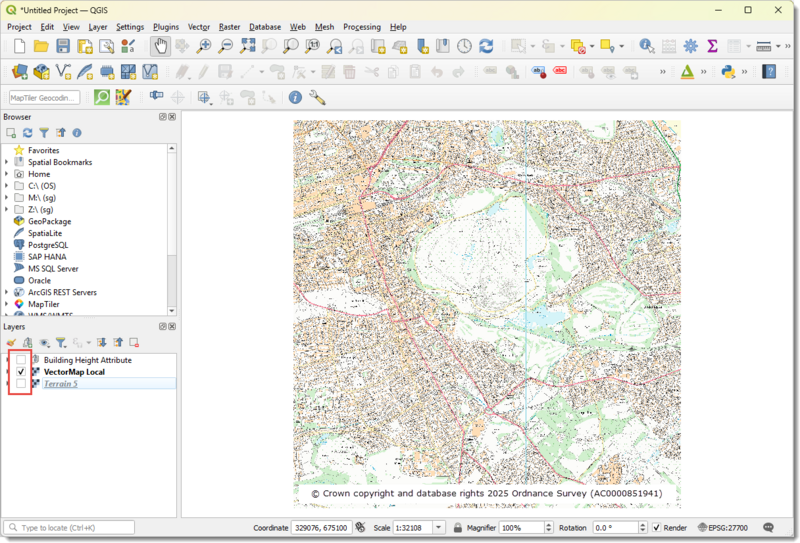

Download the following datasets for your area of interest from Digimap using the OS download data tab in Digimap:

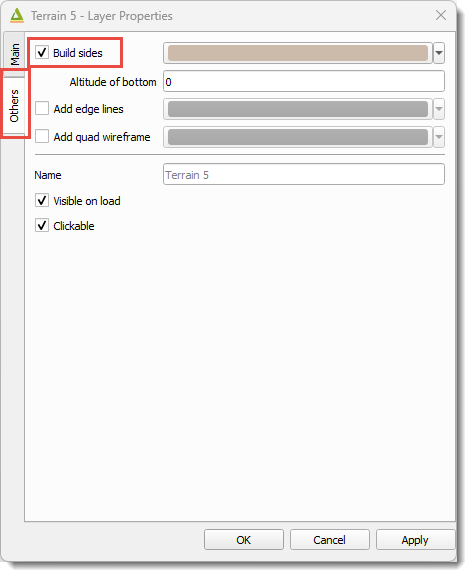

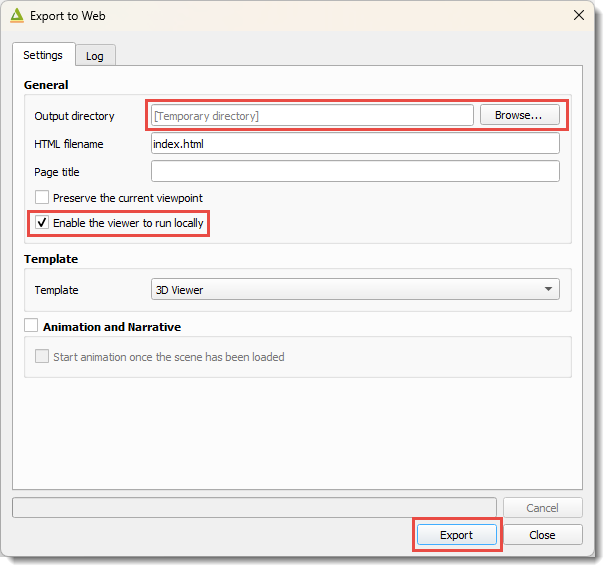

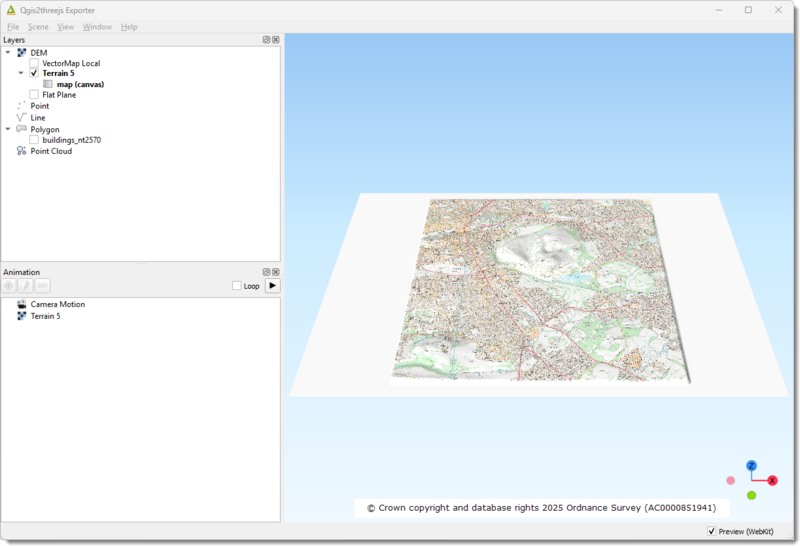

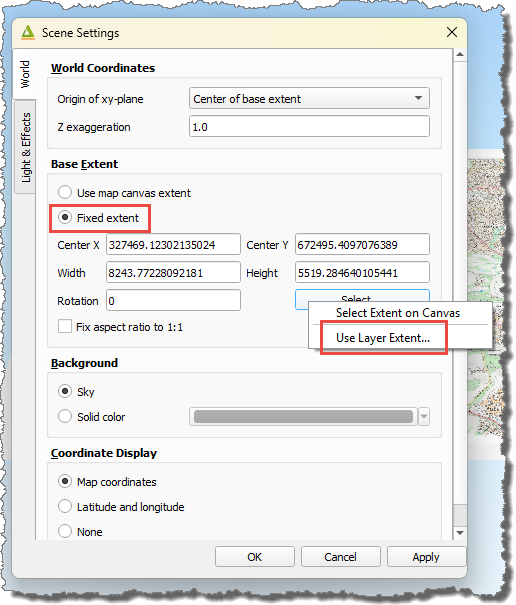

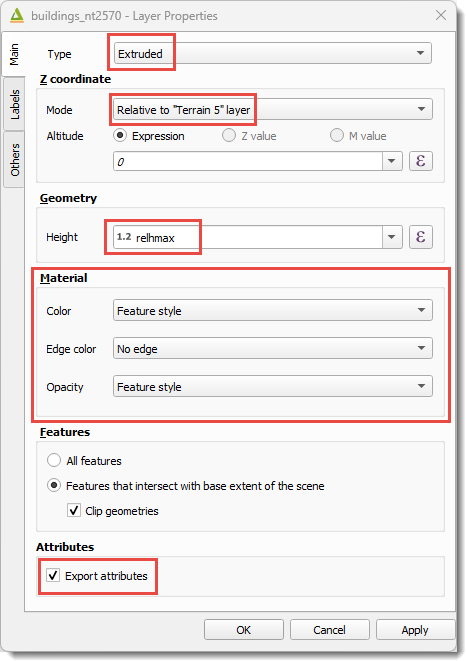

Visualising the data in 3D in QGIS is achieved using the Qgis2ThreeJS plugin, which can be installed using the QGIS plugin manager. The steps below describe how to use the plugin to create a 3D model:
TypeError: float() argument must be a string or a number.
As it is not possible to edit ESRI File Geodatabases in QGIS without installing another driver, the easiest work around is to run a ‘selection by attribute’ to select only those features that have a value for the specified attribute then export the selection to a new shapefile dataset. In the example here the query would be:
“NT27_relh2” is not null
Having selected all the features that have a height value for this attribute we can then save the selected features to a new dataset and run the visualisation on this dataset.

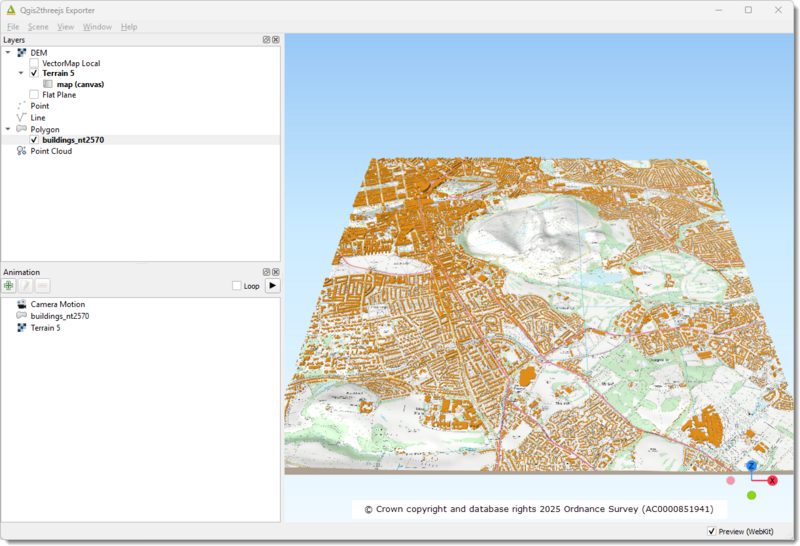

The screen grab below shows the final visualisation centred on the south side of Edinburgh using OS 1:25,000 Colour Raster as the surface layer.
